6" Trim saw

SKU: 22-319

$479 $499
Configuration:
Electricity Supply:
Quantity:

Our American-made 6″ trim saw is the perfect saw for trimming-out cabochon preforms in rocks, minerals and glass, or to cleanly trim facet material. This saw includes TWO different types of 6″ saw blades to best-suit your cutting material; one economy silver notched diamond saw blade and one premium, long-lasting red sintered diamond saw blade. Saws are available with or without the saw vise accessory.

The Hi-Tech Diamond 6" trim saw is manufactured with a 5/8" arbor and will accept any 6" saw blade that has a 5/8" arbor. The saw table has a large work area, measuring 15-1/2" L X 9" W. The housing is made of unbreakable, cross-linked polyethylene that makes it rustproof and easy to clean. Installed in each saw is a 1/4 hp, heavy-duty, direct drive permanent magnet motor with sealed ball bearings. The motor is variable speed and can deliver speeds from 800 to 3,400 rpm. The coolant reservoir is built right into the base of the machine and can hold up to 16 ounces of water. The removable saw table that covers the reservoir makes cleanup easy. The splash guard that comes with the machine keeps water off you and on your piece, making it easier for you to work.

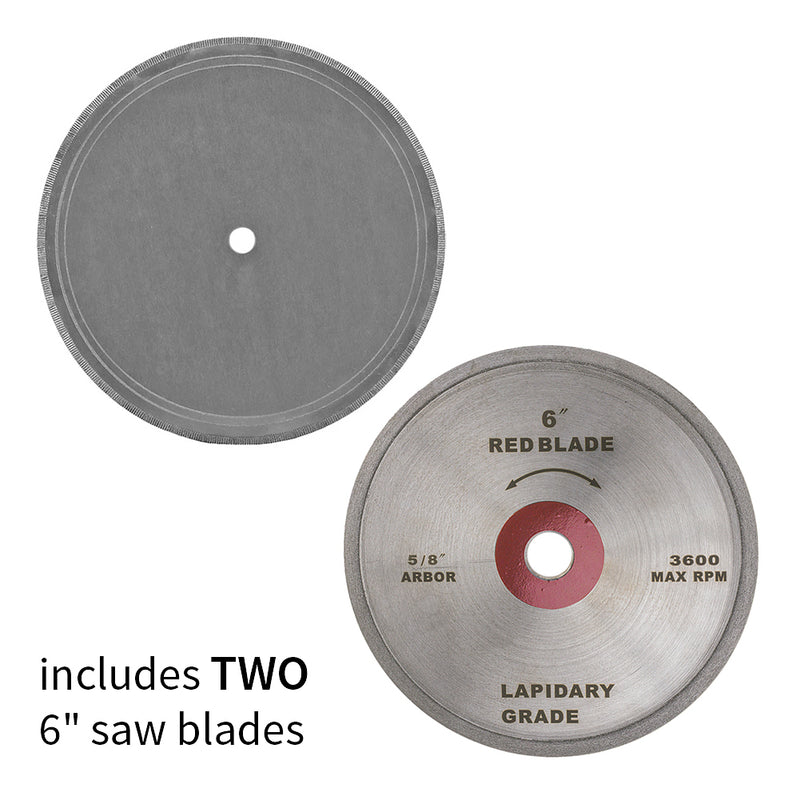

This Hi-Tech Diamond 6" trim saw machine comes with TWO different types of 6" saw blades to best-suit your cutting material. The silver notched diamond saw blade is designed for cutting rocks and minerals such as turquoise, aqua, garnet, corundum, emerald and ruby, while the red sintered diamond saw blade is designed for cutting pieces of glass, topaz, quartz and fine agates.

Electricity supply

Make sure you choose the right power supply for your machine. The 220 volt models are available only for overseas customers that require 220V - 240V power supply. All 220 volt models are manufactured with this CE rated, Type F plug (see below):

international type f plug

International customers

We are not responsible for any import duties or customs charges. Any such fees incurred to receive your package are not covered by us. Please consult your country's customs policy for more information.

6" trim saw specifications

  • Machine dimensions: 17" L X 17" W X 11" H
  • Machine weight: 15 lbs
  • Saw housing construction: rustproof, cross-linked polyethylene
  • Motor type: 1/4 hp variable speed direct drive motor with speeds ranging between 800 rpm - 3,400 rpm
  • Motor voltage: 115V or 220V
  • Saw blade height: 1-3/4"
  • Saw blade depth: 5-1/4"
  • Country of origin: U.S.A.
  • Shipped from: U.S.A.

Optional accessories

The 6" trim saw is available with or without the saw vise. This useful accessory is a precision tool that secures and holds your valuable material while you cut. All you have to do is manually advance the carriage to feed your material into the saw blade. This is a great tool if you don't want your hands near the blade or if you require very precise cuts. Installation is fast and easy. Make sure to check out our other useful saw accessory, the saw fence!

Extended warranty program

You’re about to make a smart investment by purchasing a Hi-Tech Diamond trim saw machine so protect it with our extended warranty program. Our extended warranties extend the one-year manufacturer warranty that is included with the trim saw. Choose from either a one- or two-year warranty extension. We recommend purchasing this extended warranty at the same time you purchase your Hi-Tech Diamond machine.

Customer Reviews

Based on 10 reviews
70%
(7)
30%
(3)
0%
(0)
0%
(0)
0%
(0)
J
John s Gilpin
WOW!

This machine makes light work of stone cutting and shaping don't delay just get one, you won't regret it ,I haven't

V
Vicki Benn
Love that it’s made in the USA

I’m new to using tools and found this easy to use since I am a novice. I am still experimenting and have a lot more to learn but I am enjoying the machine and can’t wait to be more proficient. A huge selling point for me was that it was made in the USA! I also really like the vice. (That was an additional purchase)
The only con I see so far is that there isn’t a drain plug and you have to carry the entire machine out of the garage to empty it . I would have given 5 stars otherwise and I have only had it for a few weeks.

S
Sandra Tourne
Review Suggestions/Complaints

I've been away for a couple of shows and so far I've been able to operate the trim saw 6"
It shows the desire to do things well and pay attention to the smallest detail. I like working with companies like yours, so these are my comments/complaints
Customer service, dispatch time, packaging, instructions very well managed and very complete to understand.
My complaints are that the machine does not have stability, it is limping, I tried to level the screws of the base rubbers but it is not possible for it to be stable, the unevenness is so much that two screws are loose if I wanted to level it. The other thing is that the silicone stops to adjust the tray fall off just looking at them. I have hit them with three strong glues and they still fall off. In addition, I added one in the back because the tray has a lot of movement at the time of cutting.
The other thing that I had to add is a 1mm thick acrylic template with some guide lines, because the tray has a corrugated design that is intended for flat stones that can be laid on it, but when cutting a stone on the edge totally irregular at any slight contact with the tray it becomes tangled and the slightest movement causes the cut to deviate. The smooth acrylic template guides the eye and allows the stone to slide freely.
Everything for now, please let me know the solution to the base rubbers, the ones I have now it is not possible to align them.
Thank you

Hi Sandra - We are always looking for ways to improve our products, so we really appreciate your valued feedback. It looks like you are in touch with one of our customer service representatives. I hope we can find the solution that you need to best meet your expectations.

F
Fernando Iguaz Pascual
corta correctamente

Cut the stoning materials well. Does not splash too much. Good design. The volume of the water tank is too big. Easy cleaning

B
Bill A Hudson
Perfect for me!

I’m an old Rock hound😜.
I wore out an old rock rascal. I’ve used tile saws.
This by far is the best trim saw I’ve ever used👍
Doesn’t take up much room goes perfect with my pixie and I’m loving it
